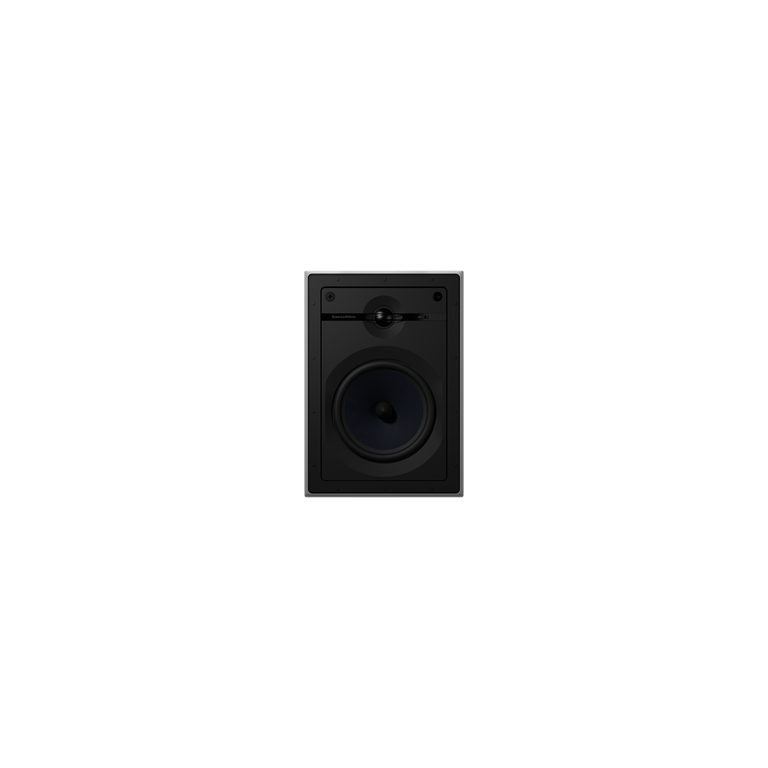

Bowers & Wilkins CWM663 IN Wall Speaker (Each)

A compact 2-way in-wall speaker with an aluminum dome tweeter and 5-in blue Aramid Fiber bass/midrange driver.

See nothing, hear everything
The CWM663 features a blue Aramid Fibre bass/midrange driver housed in
a die-cast chassis which provides the extra rigidity to provide a cleaner,
faster bass. Its aluminium tweeter also incorporates a Nautilus™ tube to
absorb unwanted sonic radiation. The CWM663 also utilises a threeposition high frequency switch to fine tune the sound. The speaker is
incredibly easy to install incorporating QuickDogs™ and plug-and-play
functionality.
Technical Specifications
www.bowers-wilkins.com
Nautilus, Flowport and FST are
trademarks of B&W Group Ltd.
Copyright © B&W Group Ltd.
E&OE
Description
Drive units
Frequency Range (-6dB)
Maximum Amp Power
Sensitivity SPL (2.83V, 1m)
Impedance Nominal (min)
Frame height
Frame width
Cut-out height
Cut-out width
Depth behind surface
Protrusion
Pre-mount Kit
Back Box
2-way in-wall system
1x ø25mm (1in) Nautilus™ tube loaded aluminium
dome tweeter
1x ø150mm (6in) blue Aramid Fibre cone bass/midrange
45Hz – 50kHz
25 – 150w
88dB
8Ω (4.5Ω)
315mm (12.4in)
221mm (8.7in)
279mm (11in)
183mm (7.2in)
95mm (3.7in)
4mm (0.2in)
PMK W6
BB 6W
